Current-Insulating Bearings: Preventing rolling bearing damages from current flow

Current passage poses a risk to rolling bearings in many applications

Whether in rail, wind power, or industrial settings, electric motors and generators face a common risk: current passing through them can harm rolling bearings, causing damage and premature failure. This is especially true in systems controlled by frequency converters.

However, using current-insulating bearings can prevent such failures, saving on repair costs and production downtime.

To prevent bearing damage which may look like:

Uniformly matt grey marks on raceways and rolling elements

Fluting or periodic patterns running in the direction of rolling on areas of the surface of different depth

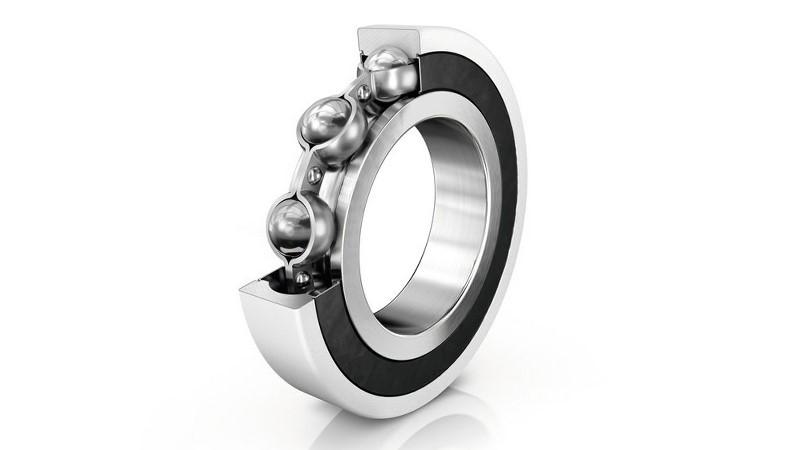

6216-2RSR-J20AB-C3
Insutect deep groove ball bearing with (contact) sealing washer on both sides and internal clearance C3

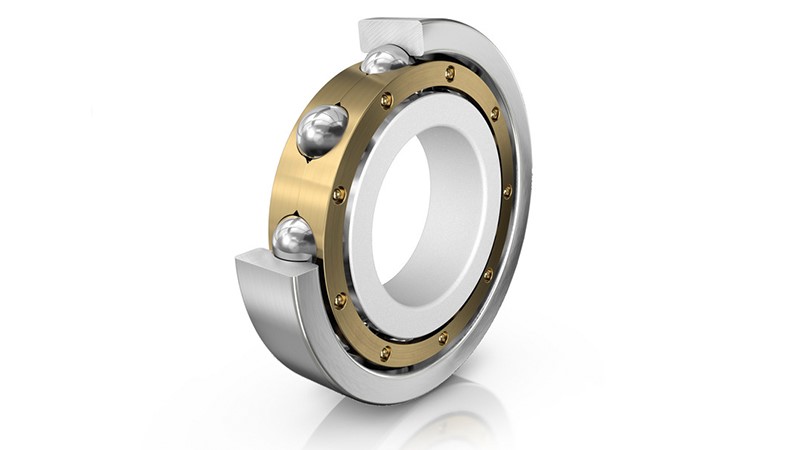

6330-M-J20C-C4
Insutect deep groove ball bearing with brass cage and internal clearance C4

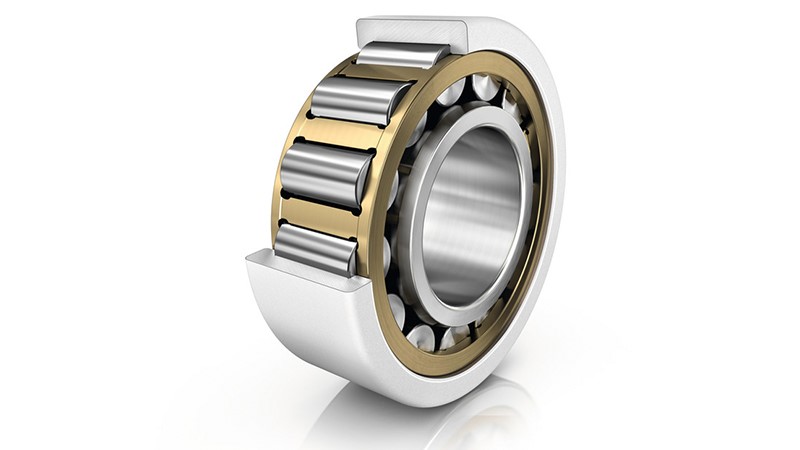

NU214-E-XL-M1-J20AA-C4
Insutect cylindrical roller bearing in XL quality with brass cage and internal clearance C4
